100V Public Address Speaker

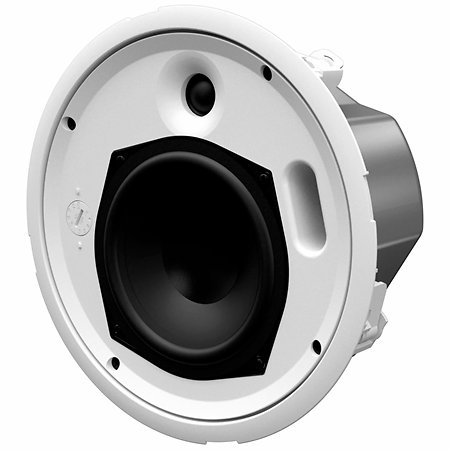

The Martin Audio Adorn ACS 55TS ceiling speaker delivers impeccable sound quality in an ultra-compact 2-way format, ideal for discreet installations in commercial spaces. With a wide 150° coverage and 70V/100V compatibility, it ensures consistent diffusion, even in environments with low ceiling height.

ARTICLE N° 98265
  • Martin Audio Adorn ACS 55TS (unit)
  • Passive ceiling speaker, ultra-compact 2-way 70V/100V line
  • Bass-reflex with front port
  • Frequency response: 117 Hz - 20 kHz
  • Recommended amplifier: VIA 2004
  • 5.25" coated paper cone mid-bass driver, rubber surround, ferrite motor, steel chassis
  • 0.75" silk dome tweeter, neodymium motor
  • Rated power: 50 W RMS / 200 W peak
  • Sensitivity: 90 dB
  • Max Spl: 113 dB peak
  • Rated impedance: 16 Ohm
  • Directivity (-6 dB): 150° H
  • Cutoff frequency: 3 kHz passive
  • Recommended high-pass filter: 65 Hz 24 dB/octave
  • Direct Mono Power 100 V: 20 W
  • Selector: multiple powers 70V: 30 W / 15 W / 7.5 W / 3.75 W
  • Selector: multiple powers 100V: 30 W / 15 W / 7.5 W
  • Speaker: ABS, UL94V-0 standard
  • Color: white
  • Grille: perforated steel
  • Connectors: Terminal blocks
  • Fixings: wall bracket included
  • Dimensions (excluding bracket): 245 x 245 x 118 mm
  • Weight: 2.8 kg
  • Accessories included: 2 mounting rails, cutting template, C-shaped support plate
The Martin Audio Adorn ACS 55TS ceiling speaker (each) is designed for commercial environments that require high-quality sound diffusion and discreet integration.
Featuring a 5.25-inch woofer and a 0.75-inch silk dome tweeter, it delivers a nominal power of 50 W RMS with a frequency response ranging from 117 Hz to 20 kHz.
Thanks to its 150° directivity, this speaker ensures homogeneous sound coverage, reducing the number of units required for an efficient installation, particularly suitable for spaces with low ceilings.

The Martin Audio Adorn ACS 55TS is also equipped with a multitap transformer for 70V and 100V lines, allowing easy adjustment of the powers via a rotary selector accessible behind its perforated steel grille, accessible even after flush mounting.
It can operate in low impedance mode at 16 ohms, which offers great flexibility in installation, especially in configurations where multiple speakers are connected to a single amplifier.

For easy installation, the Adorn ACS 55TS comes with mounting rails and a C-bracket, while its borderless grille and clean white design allow it to blend seamlessly into any decor.
Its small footprint makes it ideal for environments where aesthetics are as important as sonic performance, while being compatible with Martin Audio's recommended VIA 2004 amplifier for maximum efficiency.
Tweeter
 0.75"
Installation type
 Ceiling
Acoustic pressure (dB)
 113
Impedance
 16 Ohm
Transformer 100V
 Yes
Application
 Ambiance
Passive
 Yes
RMS power (W)
 50
Number of ways
 2
Color
 White
Packaging
 Single unit
Connectors
 Clamp Connector
Speaker
 5,25"
Weight
 2,8 kg
Frequency response, low limit
 117 Hz
Frequency response, upper limit
 20 kHz
