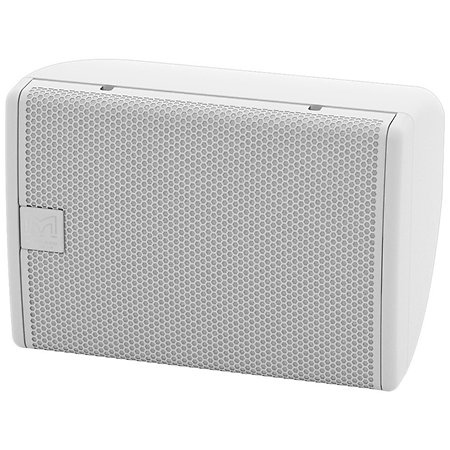

CDD5 White (l'unité) Martin Audio CDD5 White (l'unité) Martin Audio CDD5 White (l'unité) Martin Audio
CDD5 White (l'unité) Martin Audio
CDD5 White (l'unité) Martin Audio
CDD5 White (l'unité) Martin Audio

Martin Audio - CDD5 White (l'unité)

NEW
235,83 € excl VAT
In Stock
Usually shipped within 48h
+infos
Satisfaction guaranteed, or you get your money back within 45 days*
Warranty 3 years
Jessie
Jessie
Louis
Louis
Need help ?
Passive Loudspeaker

The CDD5 White compact passive loudspeaker (single) from Martin Audio delivers superior audio performance with its coaxial differential dispersion technology, ideal for consistent sound reproduction. With its elegant white design, it blends seamlessly into any décor while ensuring a clear and powerful sound envelope.

ARTICLE N° 98303
Specifications
|Presentation

Specifications

  • Martin Audio CDD5 White (each)
  • Compact 2-way passive loudspeaker
  • Coaxial differential dispersion technology
  • Frequency response: 100Hz - 20kHz
  • Mid-bass drivers: 5.25” with 1.25” voice coil, long excursion, ferrite driver
  • 0.75” fabric dome tweeter and neodymium driver
  • Power rating: 100W RMS / 400W peak
  • Recommended amplifiers: iK41, iK81, VIA2502, VIA2004
  • Sensitivity: 90dB
  • Max SPL: 110dB continuous, 116dB peak
  • Nominal impedance: 8 ohms
  • Dispersion: 120°-90° horizontal, 80° vertical (rotatable by user)
  • Crossover: 2.5 kHz passive
  • Enclosure: ABS, 3 litre volume
  • Protective grille: White perforated steel with internal protective fabric
  • Connectors: Low profile, push-lock terminal block
  • Fixings: 6 M5 inserts for wall/ceiling brackets
  • Colour: White
  • Dimensions: 230 x 160 x 149 mm
  • Weight: 3 kg
  • Accessories: CDDCB5W ceiling bracket (white), ASM10001 wall bracket (white)
The compact passive CDD5 White loudspeaker (single unit) from Martin Audio is an ideal audio solution for discreet installations in restaurants, art galleries or hotels. Its innovative design, combined with Coaxial Differential Dispersion technology, provides uniform sound coverage, reaching both near and far areas, thanks to a wide horizontal dispersion and adjustable vertical diffusion.

Equipped with a 5.25-inch mid/bass driver and a 0.75-inch fabric dome tweeter with a neodymium motor, the Martin Audio CDD5 White ensures rich and precise sound reproduction. Its nominal power of 100 W RMS and a peak of 400 W guarantee remarkable performance. With an impedance of 8 ohms, it is perfectly compatible with amplifiers such as the iK41 or VIA2502 models.

In addition, the CDD5 White stands out for its installation flexibility thanks to various fixing options and a perforated steel protection grille. Its rotating design allows the sound direction to be adjusted according to the desired orientation, whether horizontal or vertical.
Application
 Ambiance
Tweeter
 0.75"
RMS power (W)
 100
Peak power (W)
 400
Acoustic pressure (dB)
 116
Impedance
 8 Ohm
Aerial installation
 Yes
Number of ways
 2
Color
 White
Packaging
 Single unit
Speaker
 5,25"
Weight
 3 kg
Frequency response, low limit
 100 Hz
Frequency response, upper limit
 20 kHz
