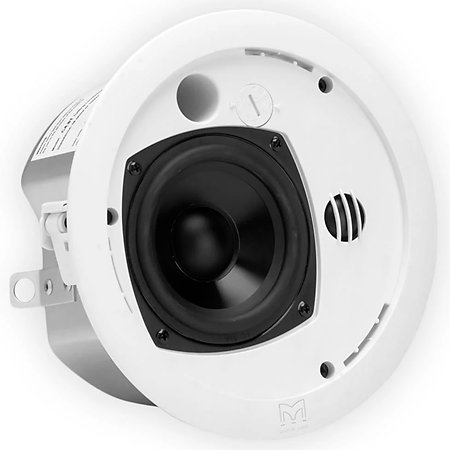

100V Public Address Speaker

The Martin Audio C4.8T loudspeaker pair offers a discreet and high-performance audio solution for in-ceiling installations, with wide and homogeneous sound coverage. Designed for environments with low ceiling height, they combine sound quality with ease of installation.

ARTICLE N° 98288
  • Martin Audio C4.8T (pair)
  • In-ceiling speakers, two-way with port
  • Packaged as a pair
  • Frequency response: 100Hz - 20kHz
  • 4" UL94V-0 polypropylene low-frequency driver
  • 0.8" dome tweeter
  • Power: 40 W RMS / 160 W peak
  • Sensitivity: 86 dB
  • Max SPL: 100 dB continuous, 106 dB peak
  • Nominal impedance: 16 ohms
  • 100V voltages: 25 W, 12.5 W, 6 W
  • 70V voltages: 25 W, 12.5 W, 6 W, 3 W
  • 180° conical dispersion
  • Crossover: 5 kHz passive
  • Enclosure: Steel back box
  • Frame and grille: UV-resistant white (can be repainted)
  • Back box: Galvanized steel
  • Protective grille: Perforated steel
  • Connectors: Terminal block
  • UL2043 and UL1480 standards
  • Accessories included:
  • 25W 70V/100V line transformer
  • Tile rails
  • C-bracket
  • Cutting template
  • Dimensions: 205 x 131 mm
  • Weight: 2.6 kg
The Martin Audio C4.8T (pair) are designed to be in-ceiling mounted and offer a two-way vented solution, ideal for discreet audio installations whilst maintaining optimum sound performance.
They incorporate a 4-inch UL94V-0 polypropylene low-frequency driver and a 0.8-inch dome tweeter, ensuring wide sound coverage with a 180° conical dispersion, making them particularly suitable for environments with low ceilings or requiring even sound distribution.

With a power of 40W RMS and a sensitivity of 86dB, the Martin Audio C4.8T ensure excellent sound clarity even at high volumes. They are also compatible with high and low impedance systems, thanks to an included line transformer, allowing use in 70V or 100V installations as required.

The passive crossover fixed at 5 kHz allows a smooth transition between low and high frequencies, optimizing audio quality.

The galvanized steel back box and perforated steel protective grille ensure resistance to harsh conditions, while the UV-resistant white frame can be repainted to match the aesthetics of the installation.
Supplied with an accessory kit including a C-bracket, tile rails and a cutting template, the Martin Audio C4.8T are ready for quick and safe installation, suitable for environments such as retail, office or public space installations.
Tweeter
 0,8"
Installation type
 Ceiling
Acoustic pressure (dB)
 106
Impedance
 16 Ohm
Transformer 100V
 Yes
Application
 Ambiance
Passive
 Yes
RMS power (W)
 40
Number of ways
 2
Color
 White
Packaging
 Pair
Connectors
 Clamp Connector
Speaker
 4"
Weight
 2,6 kg
Frequency response, low limit
 100 Hz
Frequency response, upper limit
 20 kHz
